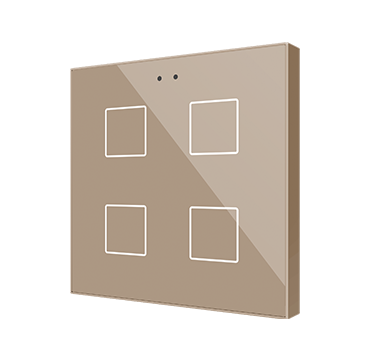

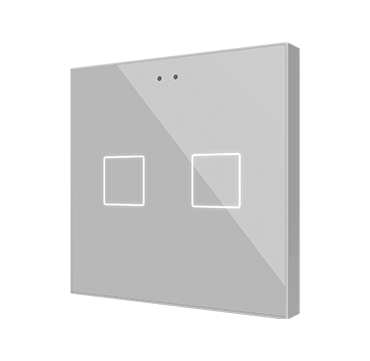

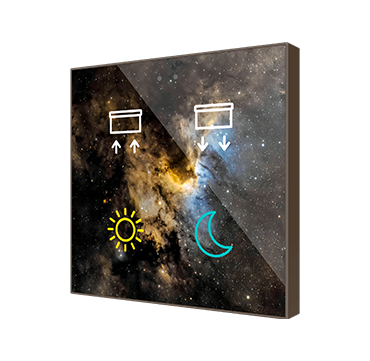

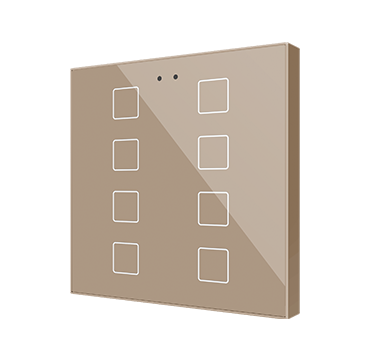

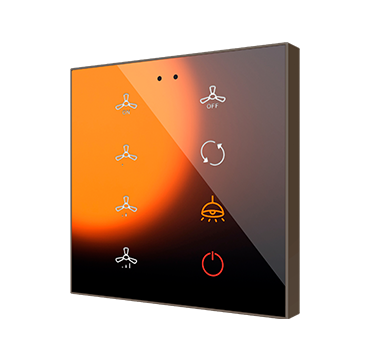

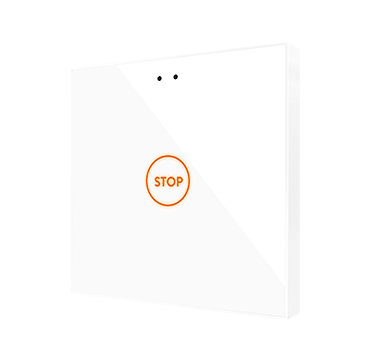

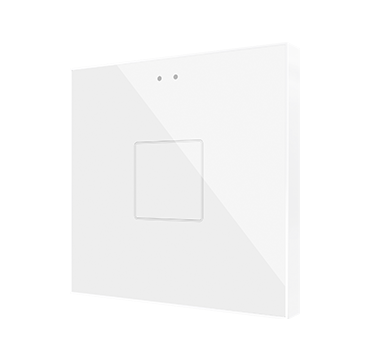

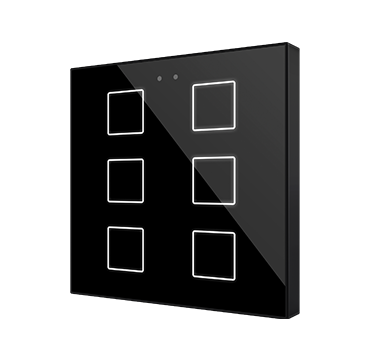

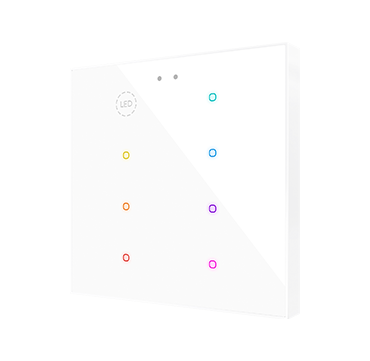

Customisable RGB backlit capacitive touch switches in the Flat family with proximity sensor and flat design (9 mm). Create unique designs including images, icons, texts or logos printed on tempered glass. 1, 2, 4, 6 or 8-button versions available all with backlit icons that adapt according to the proximity sensor. Flat RGB incorporates an internal temperature probe and thermostat as well as 2 analog-digital inputs to be configured as binary inputs, sensors, push buttons, temperature probes or motion detectors. It is compatible with KNX Secure.
Accessories: temperature probe and motion sensor.
Zennio offers various finishes to suit a wide range of decorative environments, using colour references based on international standards. This table lists the available finishes along with their corresponding reference to facilitate identification and selection.
Colours shown are based on the RAL system, an international norm widely used to define hues with precision.
| Finish Name | RAL (colour reference) | YY / XX ref suffix |
|---|---|---|
| Silver | RAL 9006 | S / 06 |
| Anthracite black | RAL 9004 | A / 05 |
| Matt white | RAL 9016 | M o MW / 09 |
| Champagne | RAL 1035 | C / 04 |
| Mocha | RAL 7006 | M / 03 |
