CX50

Name: CX50
Brand: Zennio
SKU: CX50

ZVICX50

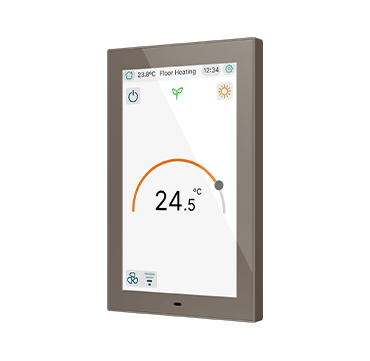

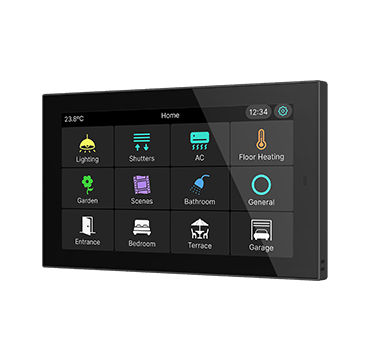

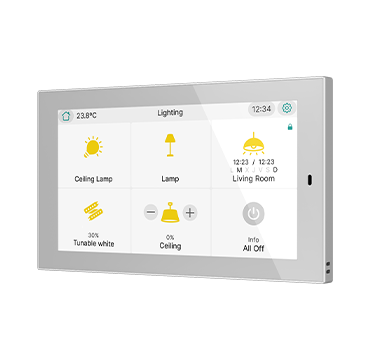

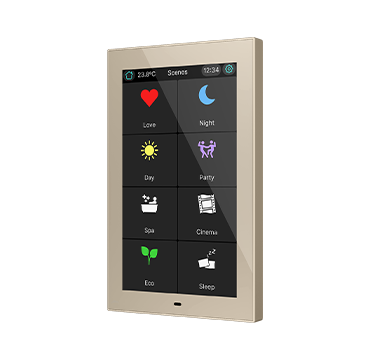

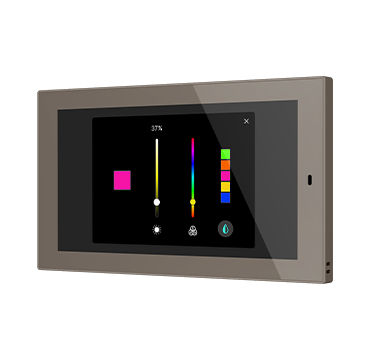

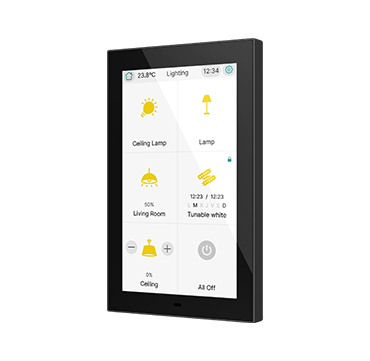

CX50 is a 5” KNX capacitive touch panel that can be installed in either horizontal or vertical orientation. Designed for room control, it features integrated temperature and humidity sensors and allows up to 96 functions to be configured across customisable pages.
Its graphical interface can be configured in light or dark mode and includes colour icons. A screensaver is also available to display the date and time.
It is powered exclusively through the KNX bus and features 4 analogue/digital inputs for connecting temperature probes, motion sensors or potential-free contacts. Compatible with KNX Secure.

Zennio offers various finishes to suit a wide range of decorative environments, using colour references based on international standards. This table lists the available finishes along with their corresponding reference to facilitate identification and selection.
Colours shown are based on the RAL system, an international norm widely used to define hues with precision.

Finish Name	RAL (colour reference)	Reference suffix
Silver	RAL 9006	S
Anthracite black	RAL 9004	A
Matt white	RAL 9016	W
Champagne	RAL 1035	C
Mocha	RAL 7006	M

Updating the CX50 to version 1.1

Due to the increased number of characters and icons included in this version, updating the CX50 application program to version 1.1 requires an additional step.
To ensure correct display of the icons, it is necessary to update these files by following the procedure described in section 1.4.1 of the Manual.
.bin files CX50.

Technical Documentation
