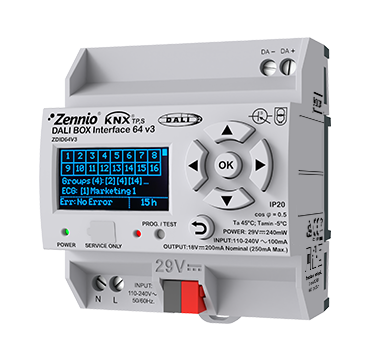

DALI BOX Interface 64 v3

ZDID64V3

KNX-DALI Interface for DIN-rail (4.5 units) to control up to 64 DALI ballasts, which can be associated in up to 16 group. In addition to groups control, each ballast can be controlled individually, being able to create groups of ballasts via KNX. It includes a display and ETS DCA for easily addressing when a ballast is replaced, that also helps assigning ballasts to groups. Error indicators for each ballast.
Compatible with emergency lighting (DT1), color ballasts (DT8) and energy monitoring (DT51 – part 252).
Device certified as Multi Master DALI-2 controller, compatible with DALI inputs.

USA_Canada_Round  Also available for USA/Canada market.

Need an older version?

Only for ETS5/ETS6 (see Warning).

Update ETS5/ETS6 with the last version in order to be able to import the product.
