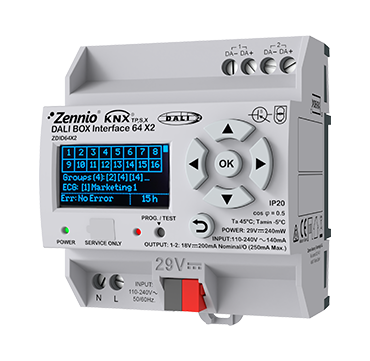

DALI BOX Interface 64 X2

ZDID64X2

KNX-DALI Interface for DIN-rail (4.5 units) with two independent DALI channels, to control up to 64 DALI ballasts per channel, which can be associated in up to 16 groups per channel. In addition to groups control, each ballast can be controlled individually, being able to create groups of ballasts via KNX. It includes a display and ETS DCA for easily addressing when a ballast is replaced, that also helps assigning ballasts to groups. Error indicators for each ballast.
Compatible with emergency lighting (DT1), color ballasts (DT8) and energy monitoring (DT51 – part 252).
Device certified as Multi Master DALI-2 controller, compatible with DALI inputs.
It is compatible with KNX Secure.

USA_Canada_Round  Also available for USA/Canada market.

Related products

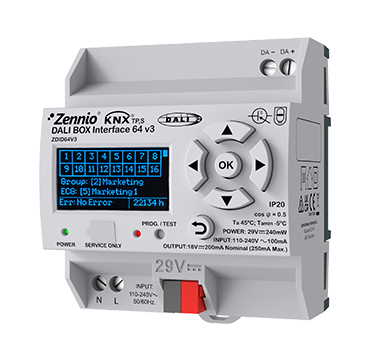

DALI BOX Interface 64 v3KNX-DALI Interface for up to 64 ballasts per…

KNX-DALI Interface for up to 64 ballasts per channel - 1 channel

ZDID64V3

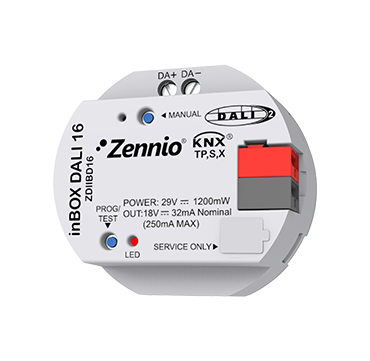

inBOX DALI 16KNX-DALI Interface for flush mounting for up to 16 ballasts…
inBOX DALI 16 — DALI lighting KNX, Zennio

KNX-DALI Interface for flush mounting for up to 16 ballasts and 16 groups - 1 channel

ZDIIBD16

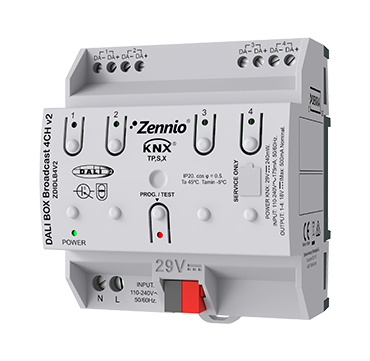

DALI BOX Broadcast 4CH v2KNX-DALI Broadcast Interface for up to 4 channels…
