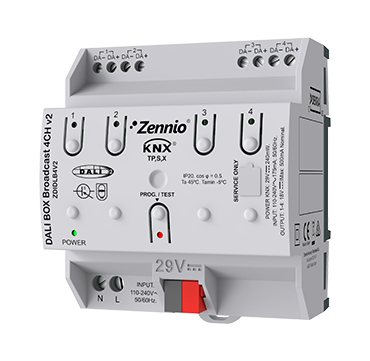

DALI BOX Broadcast 4CH v2

ZDIDLB4V2

KNX-DALI broadcast interface module for DIN rail mounting (4.5 units). It incorporates 4 channels controlled via broadcast commands, including color ballasts (DT8). It allows to connect up to 250 ballasts per device, and they can be associated as whished with up to 64 ballasts per channel. In addition, it allows the configuration of 20 scenes/sequences per channel. It is compatible with KNX Secure. It enables manual control and has LED status indicators per channel.
Compatible with energy monitoring (DT51 – part 252).

USA_Canada_Round  Also available for USA/Canada market.

Update ETS5/ETS6 with the last version to be able to import the product.
