ZS55 – French Socket

ZS55 is the Zennio series of 55 x 55 mm switches and sockets. They have an elegant and timeless design. They are flush fitting with frames and a perfect integration with capacitive switches Flat 55 and Tecla 55.

Technical features French Socket

• Socket type E
• Power supply: 16 A / 250 V ~
• Wires up to 2.5 mm²
• Screw terminals
• Screw and optional claws fixing
• Childproof safety shutter
• International standard IEC 60884-1

References French Socket (sold separately)

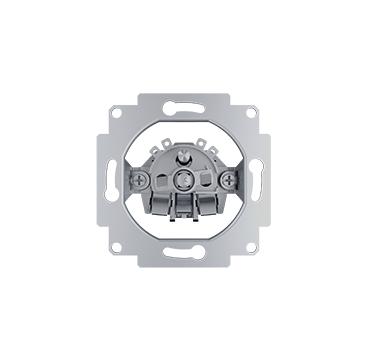

• • ZS55 – French socket insert – ref. 8300005
  • ZS55 – French socket cover 55 x 55 mm – ref. 8300006XX
  • ZS55 – 1-gang Frame – ref. 9800001XX
  • ZS55 – 2-gang Frame – ref. 9800002XX
  • ZS55 – 3-gang Frame – ref. 9800003XX
  • ZS55 – 4-gang Frame – ref. 9800004XX

XX = 05 (Anthracite) / 06 (Silver) / 08 (Gloss white) / 09 (Matt white)
