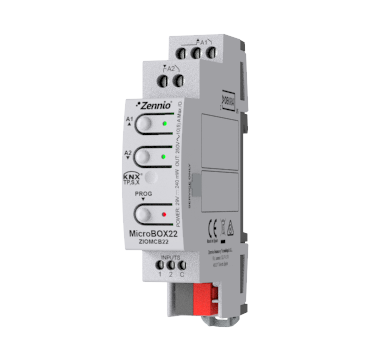

MicroBOX 22

ZIOMCB22

Multifunction actuator for DIN-rail (1 unit) with 2 outputs (10 A C-load), which offer multiple configurations as shutter channels or individual outputs. It allows manual control of its outputs through the push buttons on the cover and monitor the status. It also includes a logical function module with 10 functions. It incorporates 2 analog-digital inputs that may be configured as binary inputs for sensors and potential-free push buttons, as temperature probe inputs or as motion sensor inputs. It is compatible with KNX Secure.
Accessories: Temperature probes, motion sensor and AC/DC shutter adapters.

Technical Documentation
