Flat 55 Display

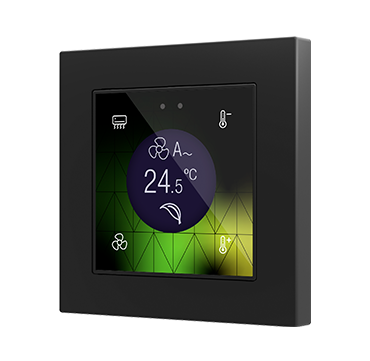

Capacitive touch panel with display (55 x 55 mm)


Backlit capacitive touch panel with round display in Flat 55 family (standard frames 55×55 mm), with proximity sensor, flat design, with total customisation. Flush fitting with Zennio ZS55 frames, switches and sockets. Anyone can create unique compositions, including images, icons, texts or logos, which are printed on a high-strength tempered glass. Room control is simple with the 4 buttons available and up to 4 indicators can be shown on its central display. The backlit icons for buttons regulate their brightness with the included ambient luminosity sensor and attenuate when the user is not detected by the proximity sensor. Flat 55 Display includes a thermostat, as well as 2 analog-digital inputs that may be configured for potential-free sensors and push buttons, temperature probes or motion sensors. Installation in standard mounting box with 55×55 frames of 1/2/3/4 modules (white, gloss white, anthracite or silver). Accessories: temperature probe (included) and motion sensor. Frame not included.

On-line application for designing your own Capacitive Switch.



IMPORTANT NOTE:The production of this product, Flat 55 Display, has been discontinued, since it has been replaced by Flat 55 Display V2 (Ref. ZVIFDV2), including the same and even greater functionality. However, this discontinued device counts on all the support that may be required: manuals, databases, spare parts and technical support. Update ETS5/ETS6 with the last version to be able to import the product.

Application Program ETS

Only for ETS5/ETS6 (see Warning).
