Switches and sockets - Data connectors

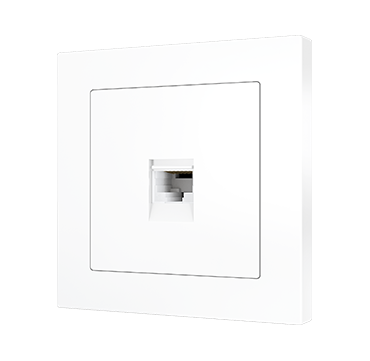

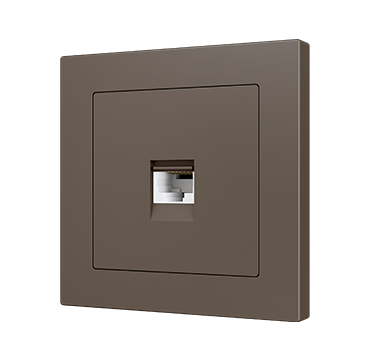

ZS55 – Single RJ45 outlet

Single RJ45 outlet (55 x 55 mm)

REF: 8300009+46/47+12XX

ZS55 is Zennio’s 55 x 55 mm switches and sockets series. Timeless and elegant, flush fitting with the frame for a perfect combination with Flat 55 and Tecla 55 capacitive touch switches.

Technical characteristics Single RJ45 outlet

  • Number of outlets: 1 (8300009)
  • Keystone jack: Cat 5e (8300046) or Cat 6A (8300047)
  • Connection method: Crimped
  • Fixing mechanism: screws and optional claws
  • Keystone type insert fixing
  • Norms EN55022, EN55024, IEC61000-4-5

References Single RJ45 outlet (sold separately)

    • ZS55 – RJ45 outlet – 1 outlet – ref. 8300009
    • ZS55 – RJ45 outlet Cat 5e – Keystone jack – ref. 8300046
    • ZS55 – RJ45 outlet Cat 6A – Keystone jack – ref. 8300047

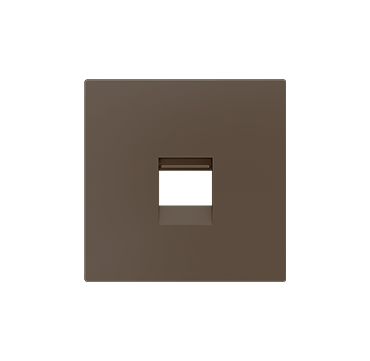

    • ZS55 –55 x 55 mm cover for 1 RJ45 outlet – ref. 8300012XX
    • ZS55 – Frame – 1 module – ref. 9800001XX
    • ZS55 – Frame – 2 modules – ref. 9800002XX
    • ZS55 – Frame – 3 modules – ref. 9800003XX
    • ZS55 – Frame – 4 modules – ref. 9800004XX

XX = 05 (Anthracite) / 06 (Silver) / 08 (Gloss white) / 09 (Matt white)
