Discontinued

Square TMD

ZVI-SQTMD1/2/4/6

Square TMD is a capacitive switch with 1, 2, 4 or 6 multifunction buttons. Square TMD is a KNX switch with capacitive buttons that satisfies the design requirements of any project thanks to its total customization: everyone can create unique compositions, which could include images, icons, texts or logos. This customization is printed on a high-strength tempered glass with a polycarbonate frame to finish off the author’s work. Square TMD 1, 2, 4 or 6 allows selecting the function for each button and also includes thermostat function, internal temperature probe and two analog/digital inputs
Available models: Standard White/Black/Silver or Customized.

On-line application for designing your own Capacitive Switch.

IMPORTANT NOTE: The production of this product, Square TMD, has been discontinued, since it has been replaced by Flat RGB (Ref. ZVIFR), including the same and even greater functionality. However, this discontinued device counts on all the support that may be required: manuals, databases, spare parts and technical support.
Update ETS5/ETS6 with the last version to be able to import the product.

Related products

ZVIFR6_F6_DER_ENEG_CUS|ZVIFR1W_F1_DER_EBLA_STD_L|ZVIFR2S_F2_DER_VER_EGRI_STD|ZVIFR4C_F4_DER_VER_ECHA_STD_L|ZVIFR6A_F6_DER_VER_ENEG_STD|ZVIFR1C360_F1_DER_ENEG_CUS_FC01166b_010701112|ZVIFR8C_F8_DER_VER_ECHA_STD_L|ZVIFR1_F1_DER_EBLA_CUS_010701031|ZVIFR2C360_F2_DER_VER_EGRI_CUS_FC0199_010701031|ZVIFR4C360_F4_DER_EMOK_CUS_010701031|ZVIFR8_F8_DER_EBLA_CUS_010709101|ZVIFR8C360_F8_DER_EMOK_CUS_FC0329_010709101

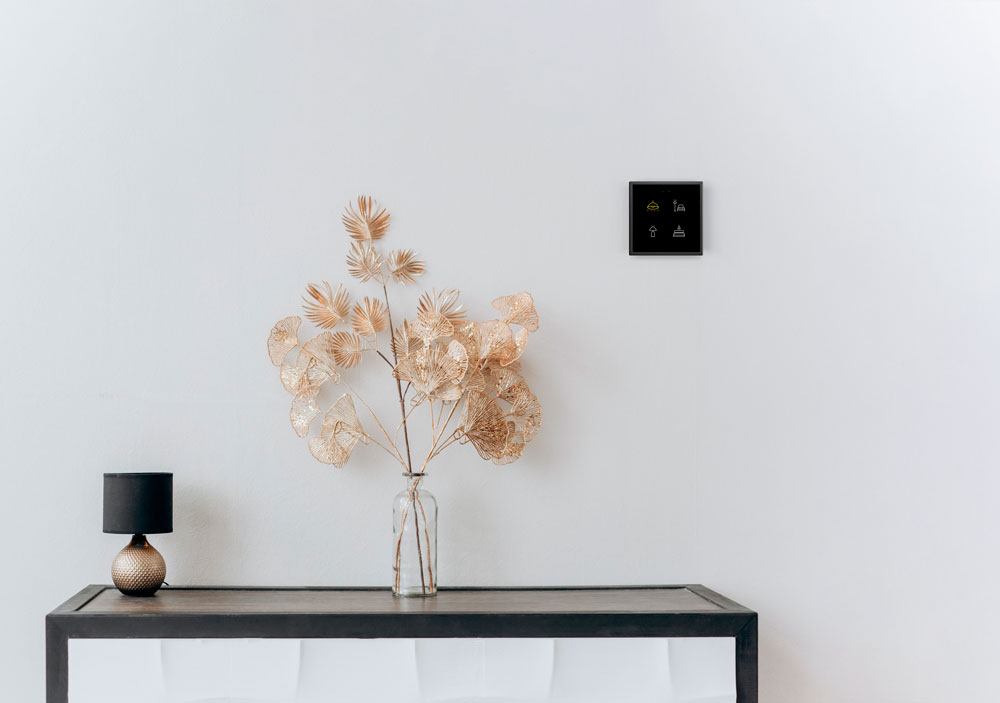

Flat RGB 1/2/4/6/8
