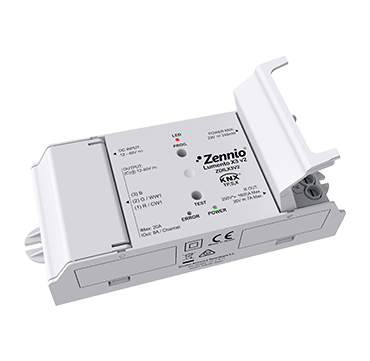

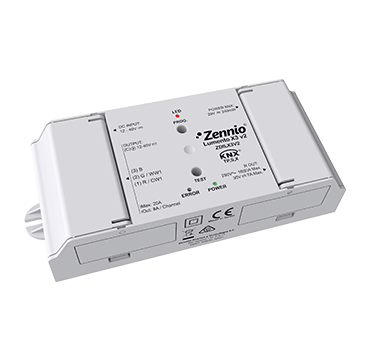

Lumento X3 v2

ZDILX3V2

LED dimmer with 3 channels designed for LED technology, featuring constant voltage regulation through pulse width modulation (PWM at 1000 hz).
The dimming channels can be configured as independent channels, RGB channel and 1 TW channel + 1 independent channel. Additionally, it includes a relay output (16 A) to control the LED power supply or for independent use, as well as a manual test button to check the functioning of the channels. Among its comprehensive functionality, the Color Temperature control and the HCL control (Human Centric Lighting) stand out. It is compatible with KNX Secure.
Maximum current per channel: 8 A. Maximum current per device: 20 A. Power supply: 12-40 VDC.

Need an older version?

Only for ETS5/ETS6 (see Warning).

Update ETS5/ETS6 with the last version in order to be able to import the product.
