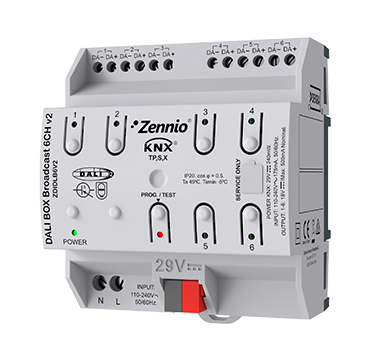

DALI BOX Broadcast 6CH v2

KNX-DALI Broadcast Interface for up to 6 channels with up to 64 ballasts each

REF: ZDIDLB6V2

KNX-DALI broadcast interface module for DIN rail mounting (4.5 units). It incorporates 6 channels controlled via broadcast commands, allowing a total of 64 ballasts per channel, including color ballasts (DT8). In addition, it allows the configuration of 20 scenes/sequences per channel. It is compatible with KNX Secure. It enables manual control and has LED status indicators per channel.

Application Program ETS

DALI BOX Broadcast 6CH v2 1.1 - ETS5/ETS6

Need an older version?

Only for ETS4/ETS5/ETS6 (see Warning).

Technical Documentation

Datasheet
Manual

Tools

2D File (DXF)

Marketing Toolbox

Pictures
CE Certification
UKCA Certification
REACH Certificate
KNX Certificate of Conformity
KNX Certificate

Warning

Update ETS4/ETS5/ETS6 with the last version to be able to import the product.
