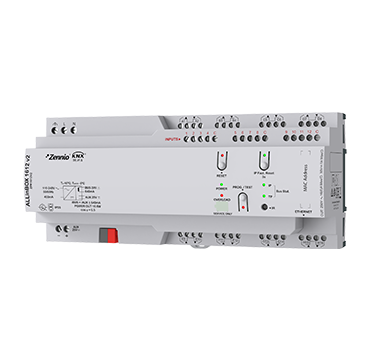

ALLinBOX 1612 v2

Multifunction device with power supply, KNX-IP Interface, 16 outputs, 12 inputs and logical module

REF: ZPR1612V2

The starting point for most projects incorporating control and monitoring functionalities. Multifunction device that integrates a 640 mA KNX power supply, KNX-IP Interface, 4 independent thermostats, logical module, 12 analog/digital inputs and 16 relay outputs (16 A C-Load) in only 12 DIN rail units. Offers multiple configuration options as individual outputs, shutter channels or fan coil controller (2/4 pipes).

Discontinued

Warning

IMPORTANT NOTE: The production of this product, ALLinBOX 1612 v2, has been discontinued, since it has been replaced by ALLinBOX 1612 v3 (Ref. ZPR1612V3), including the same and even greater functionality. However, this discontinued device counts on all the support that may be required: manuals, databases, spare parts and technical support.
Update ETS5/ETS6 with the last version to be able to import the product.

Application Program ETS

Only for ETS5/ETS6 (see Warning).
