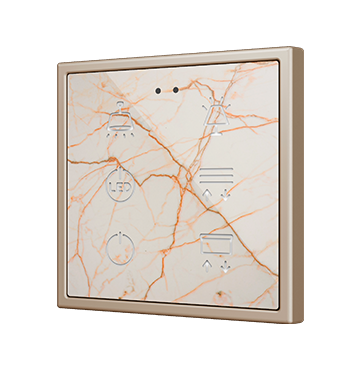

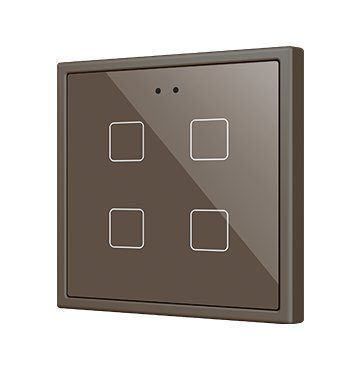

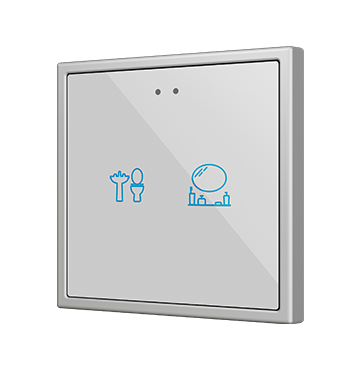

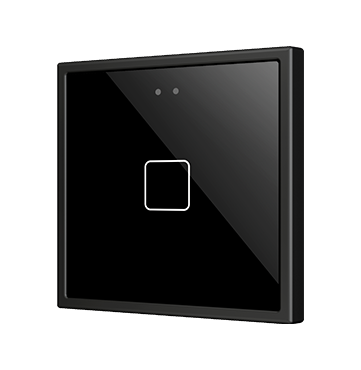

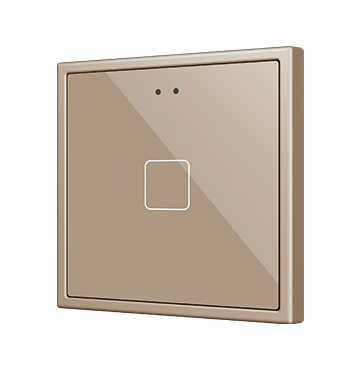

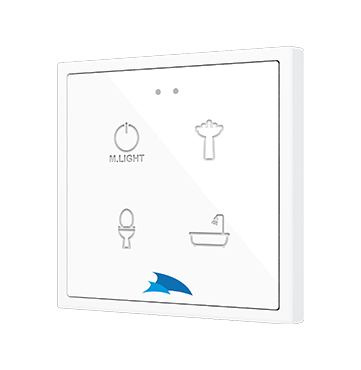

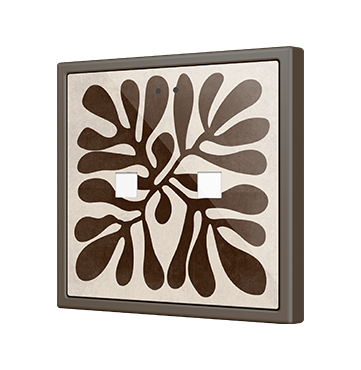

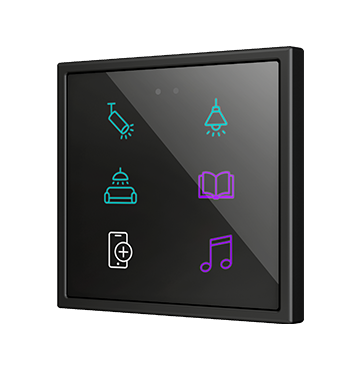

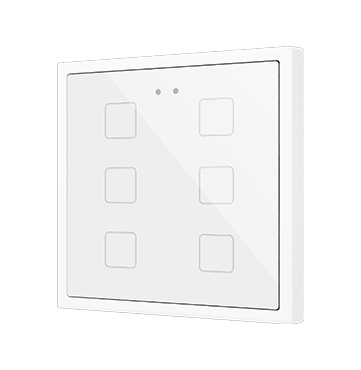

Flat RGB 70 X1/X2/X4/X6

Customisable RGB backlit capacitive touch switches in the Flat family, with proximity sensor and flat design (9 mm), sized 70 x 70 mm, to be combined with 70 x 70 mm frames from Zennio and Jung LS series. Its customisation is printed on a high-strength tempered glass, which allows a total customization of the product background, including images, icons, texts, etc. 1, 2, 4 and 6 button versions available that share the same application program, all with settable functions and RGB backlit icons, that attenuate it when the user is no more detected by its proximity sensor. Flat RGB 70 incorporates an internal temperature probe and a thermostat, as well as 2 analog-digital inputs to be configured as binary inputs, sensors, push buttons, temperature probes or motion detectors. It is compatible with KNX Secure.
Accessories: temperature probe and motion sensor.
Frame not included.

Zennio offers various finishes to suit a wide range of decorative environments, using colour references based on international standards. This table lists the available finishes along with their corresponding reference to facilitate identification and selection.

Colours shown are based on the RAL system, an international norm widely used to define hues with precision.

Finish Name		RAL (colour reference)	YY / XX ref suffix
	Silver	RAL 9006	S / 06
	Anthracite black	RAL 9004	A / 05
	Matt white	RAL 9016	W or MW / 09
	Champagne	RAL 1035	C / 04
	Mocha	RAL 7006	M / 03

Finishes: see available finishes
Visit Touch My Design tool to customise your own Capacitive Switch.
