Flat 55 X1/X2/X4

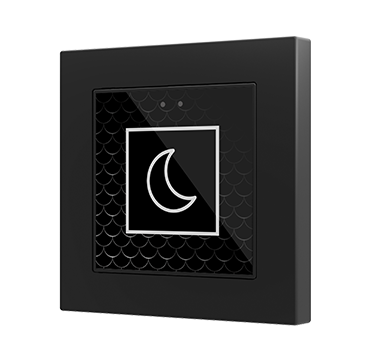

Backlit capacitive touch switch (55 x 55 mm)

REF: ZVI-F55X1/X2/X4

Backlit capacitive touch switches in Flat 55 family (standard frames 55×55 mm), with flat design and total customisation. Flush fitting with Zennio ZS55 frames, switches and sockets. Anyone can create unique compositions, including images, icons, texts or logos, which are printed on a high strength tempered glass. There are models with 1, 2 or 4 configurable buttons and backlit icons, which regulate their brightness with the included ambient luminosity sensor and attenuate when the user is not detected by the proximity sensor. Flat 55 incorporates a thermostat, as well as 2 analog-digital inputs to be configured as binary inputs, sensors, push buttons, temperature probes or motion detectors. Installation in standard mounting box with 55×55 frames of 1/2/3/4 modules (white, gloss white, anthracite or silver). Accessories: temperature probe and motion sensor. Frame not included.

On-line application for designing your own Capacitive Switch.



IMPORTANT NOTE:The production of this product, Flat 55, has been discontinued, since it has been replaced by Flat 55 V2 (Ref. ZVIF55X4V2/X2V2/X1V2), including the same and even greater functionality. However, this discontinued device counts on all the support that may be required: manuals, databases, spare parts and technical support. Update ETS5/ETS6 with the last version to be able to import the product.
