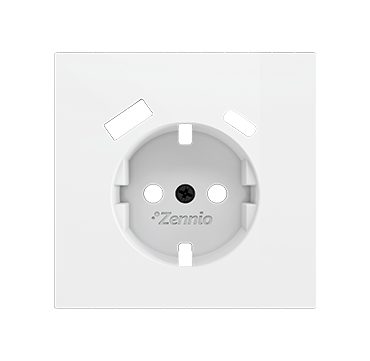

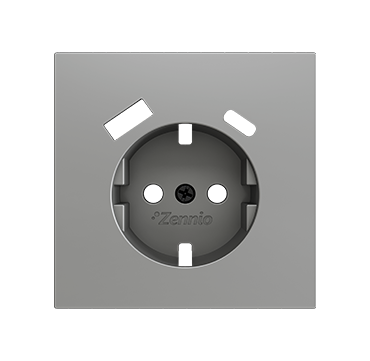

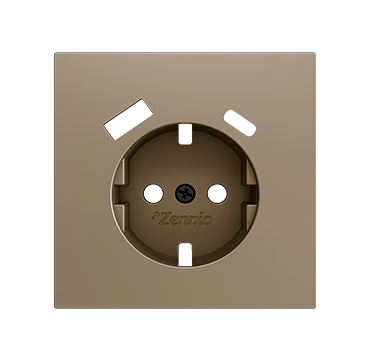

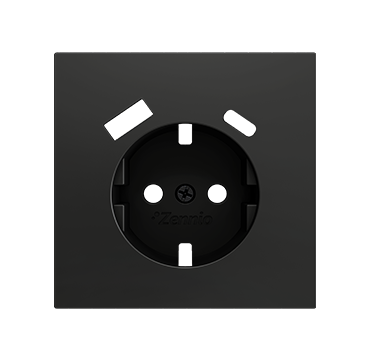

ZS70 – Schuko Socket with USB C + A

Schuko socket with USB C + A, integrable with Zennio’s 70 x 70 mm switches and sockets series. Timeless and elegant, flush fitting with the frame for a perfect combination with Z28, Flat 70 and Tecla 70 capacitive touch switches.

Technical features Schuko Socket

• Socket type F
• Power supply: 16 A / 250 V ~
• Wires up to 2.5 mm²
• Quick-connect terminals
• Screw and optional claws fixing
• Childproof safety shutter
• International standard IEC 60884-1

References Schuko Socket (sold separately)

• ZS70 – Schuko with USB C + A socket insert – ref. ZSISC2US
• ZS70 – Schuko socket with USB C + A cover 70 x 70 mm – ref. ZS70CSC2USYY
• ZS70 – 1-gang Frame – ref. ZS70FM1XX
• ZS70 – 2-gang Frame – ref. ZS70FM2XX
• ZS70 – 3-gang Frame – ref. ZS70FM3XX
• ZS70 – 4-gang Frame – ref. ZS70FM4XX

YY = A (Anthracite) / S (Silver) / MW (Matt white) / C (Champagne)
XX = 05 (Anthracite) / 06 (Silver) / 09 (Matt white) / 04 (Champagne)
