ZS70 – Schuko Socket with USB C

Schuko socket 16 A / 250 V ~ with UCB C (70 x 70 mm)

REF: ZSISC1US+ZS70CSC1US

Schuko socket with USB C, integrable with Zennio’s 70 x 70 mm switches and sockets series. Timeless and elegant, flush fitting with the frame for a perfect combination with Z28, Flat 70 and Tecla 70 capacitive touch switches.

Technical features Schuko Socket

  • Socket type F
  • Power supply: 16 A / 250 V ~
  • Wires up to 2.5 mm2
  • Quick-connect terminals
  • Screw and optional claws fixing
  • Childproof safety shutter
  • International standard IEC 60884-1

References Schuko Socket (sold separately)

  • ZS70 – Schuko with USB C socket insert – ref. ZSISC1US
  • ZS70 – Schuko socket with USB C cover 70 x 70 mm – ref. ZS70CSC1USYY
  • ZS70 – 1-gang Frame – ref. ZS70FM1XX
  • ZS70 – 2-gang Frame – ref. ZS70FM2XX
  • ZS70 – 3-gang Frame – ref. ZS70FM3XX
  • ZS70 – 4-gang Frame – ref. ZS70FM4XX

Zennio offers various finishes to suit a wide range of decorative environments, using colour references based on international standards. This table lists the available finishes along with their corresponding reference to facilitate identification and selection.

Colours shown are based on the RAL system, an international norm widely used to define hues with precision.

Finish Name RAL (colour reference) YY / XX ref suffix

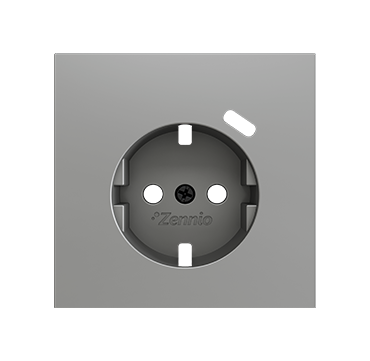

Silver Silver RAL 9006 S / 06

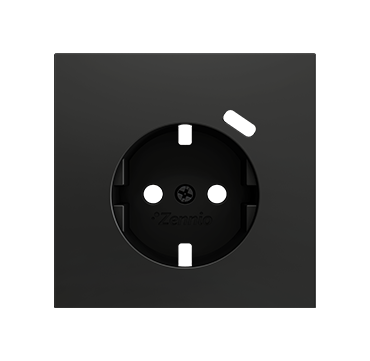

Anthracite Anthracite black RAL 9004 A / 05

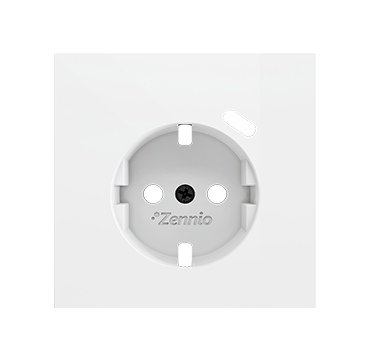

Matt white Matt white RAL 9016 W or MW / 09
Champagne Champagne RAL 1035 C / 04
MOCHA Mocha RAL 7006 M / 03
